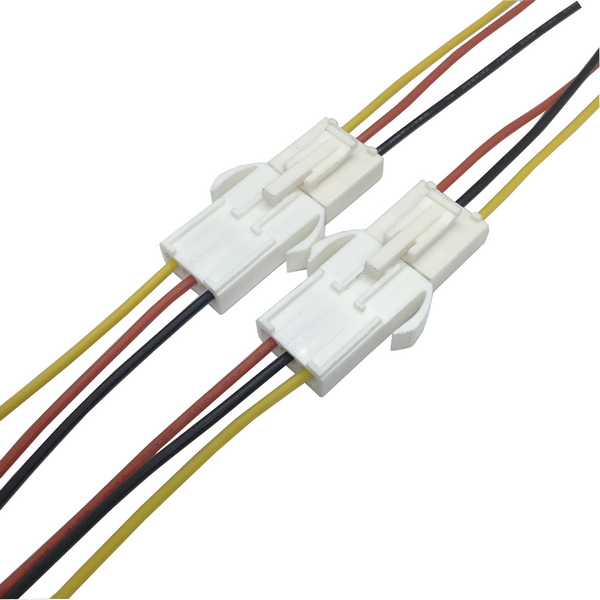

EL 4.5mm pitch Male To Female JST Connector Custom Cable Assembling
EL 4.5mm pitch Male To Female JST Connector Custom Cable Assembling
| Product Name | JST EL 4.5MM 3P Male to Female cable assmbling | ||
| length | 10cm or customized | Color | black red or custom |
| wire | UL1007-18AWG | Jacket | PVC |
| pitch | 4.5MM | pins | 3pin |
| Application | Automobile | Delivery | shipped in 10 days |
EL connector Details
Replacement: JST EL Connector
Pitch: 4.5mm
Poles: 2-6P
Voltage Rating: 300V AC/DC
Current Rating: 10-6A AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 15mΩ
Insultaion Resistance: ≥1000mΩ
Withstand Voltage: 1500V AC/minute
|
|||||||||||||||||||||||||||||||
Order and Mass Production:
1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirming our sample and 30% T/T deposit received.
3) Quality is under strict manage and supervision during every production.
