IP67 Waterproof Micro USB Wire Harness Custom Molded USB Cable Assembly
欢迎来电：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aeros
产 品 介 绍

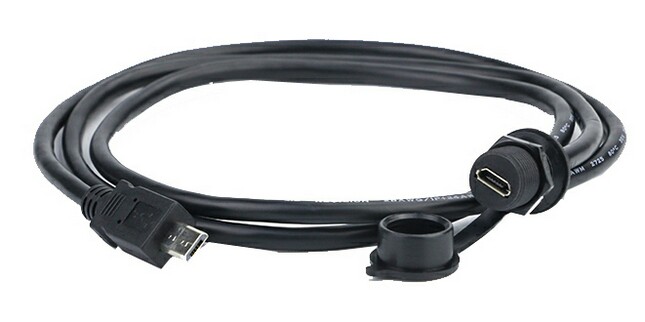

IP67 Waterproof Micro USB Wire Harness Custom Molded USB Cable Assembly
Product Details
| Cable specification |
0.15mm2~0.2mm2/ 26~24 AWG |
||
| Diameter range | Φ5.5mm~Φ7mm | ||
| Contact diameter × number | 9/4 | ||
| Rated Current (A) | 1.5A | ||
| Withstanding Voltage (AC.V) 1 minute | 1000V,2.0-500V,3.0-100V | ||
| Insulation resistance | >500MΩ | ||
| Protection level | IP67 | ||
| Durability | ≥500times | ||
| Working temperature | -40℃~80℃ | ||
| Connecting mode | Quickly bayonet connect | ||
| MATERIALS | |||
| Housing&insulation parts | high-porformance engineering plastics | ||
| Hardware | zinc alloy(pearl hard chrome) | ||
| copper pins | copper Shell | ||
| waterproof cover | Silica gel | ||
| Flammability rating | UL94-V0 | ||
