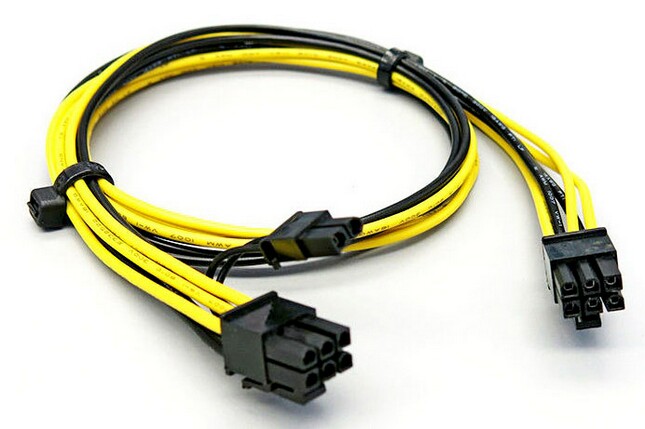

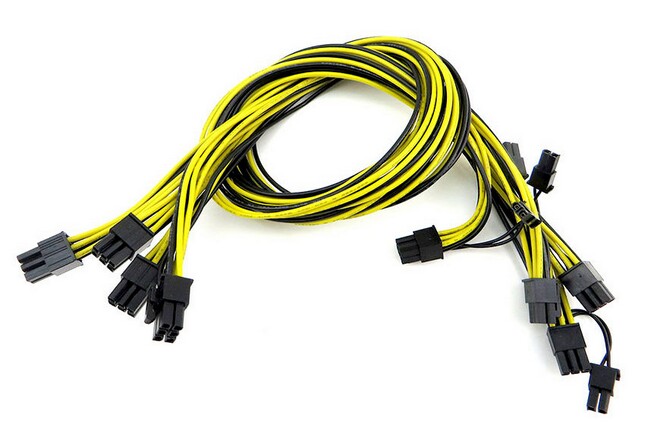

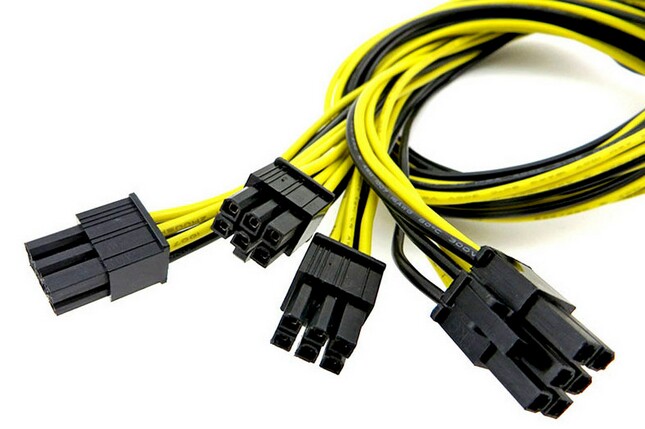

PCI-e 6-pin + 2 pin Male Plug OEM Power Supply Extension Cable Wire Harness
Connector: PCI Express Power 6 Pin Female
Connector: PCI Express Power 6 Pin Male
Cable Length: Customized
Wire: 18AWG UL1007 Black and Yellow or Customized
Connector type: Molex 4.2mm PCI-e Standard
Application: Computer, Automobile, Hard disk, sata,DVD, HDD
UL1015 PVC WIRE |
|
Product Category: |
PVC HOOK-UP WIRE |
Temperature Rating: |
105°C |
Rated voltage: |
600V |
Test voltage: |
2000V |
Insulation Material: |
PVC |
Conductor material: |
bare copper/tinned copper/sliver copper |
Application: |
For internal wiring of electronic and electrical equipment |
Conductor |
Insulates |
specification |
Packs |
|||
AWG |
Conductor NO* mm |
Diameter mm |
Thick mm |
Over diameter mm |
Max.resistance at 20°C(Ω/KM) |
Meter Roll |
30 |
7*0.10 |
0.30 |
0.76 |
1.82 |
376.96 |
610 |
28 |
7*0.12 |
0.37 |
0.76 |
1.89 |
237.25 |
610 |
26 |
7*0.16 |
0.49 |
0.76 |
2.01 |
148.94 |
610 |
24 |
11*0.16 |
0.61 |
0.76 |
2.13 |
93.25 |
610 |
22 |
17*0.16 |
0.76 |
0.76 |
2.28 |
55.00 |
610 |
20 |
21*0.18 |
0.95 |
0.76 |
2.47 |
34.60 |
610 |
18 |
41*0.16 |
1.18 |
0.76 |
2.73 |
21.86 |
610 |
16 |
26*0.254 |
1.47 |
0.76 |
2.99 |
13.70 |
305 |
14 |
41*0.254 |
1.85 |
0.76 |
3.37 |
8.62 |
305 |
12 |
65*0.254 |
2.33 |
0.76 |
3.85 |
5.43 |
305 |
10 |
105*0.254 |
3.47 |
0.76 |
4.99 |
3.41 |
305 |
8 |
133*0.284 |
4.37 |
1.14 |
6.65 |
2.33 |
100 |
6 |
266*0.254 |
5.52 |
1.52 |
8.56 |
1.46 |
100 |
28 |
1*0.32 |
0.32 |
0.76 |
1.84 |
237.25 |
610 |
26 |
1*0.40 |
0.40 |
0.76 |
1.92 |
148.94 |
610 |
24 |
1*0.50 |
0.50 |
0.76 |
2.02 |
93.25 |
610 |
22 |
1*0.60 |
0.60 |
0.76 |
2.12 |
55.00 |
610 |
20 |
1*0.80 |
0.80. |
0.76 |
2.32 |
24.60 |
610 |
18 |
1*1.00 |
1.02 |
0.76 |
2.52 |
21.80 |
610 |
16 |
1*1.28 |
1.28 |
0.76 |
2.80 |
13.60 |
305 |
