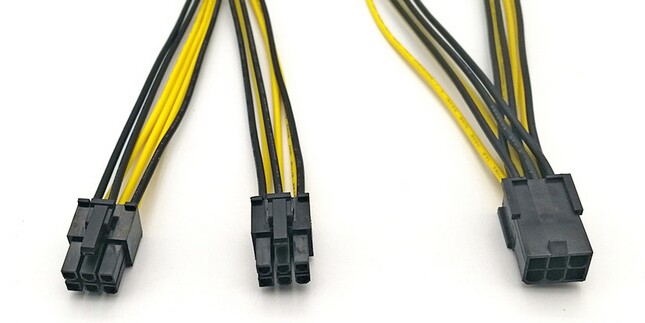

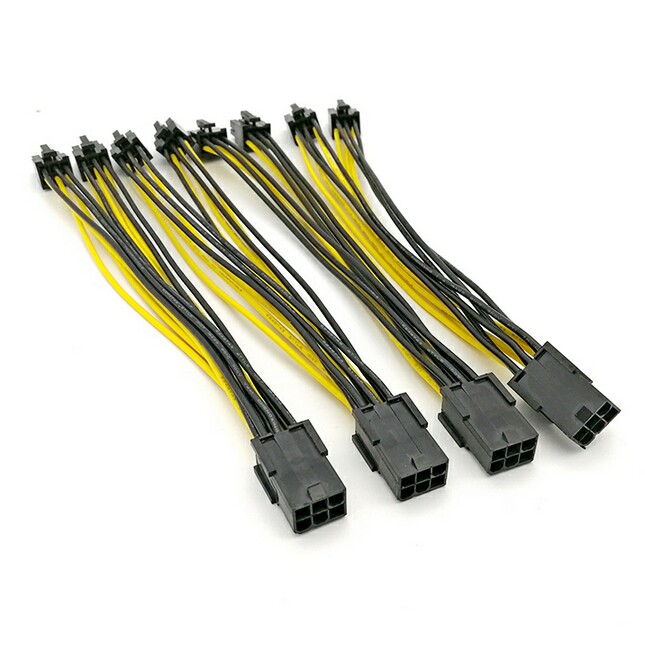

Female PCI-E 6Pin Pin Electrical Cable Connectors to Dual 6 Pin PCI-E Y Splitter Power Adapter Extension Wire Harness
Welcome Calls：

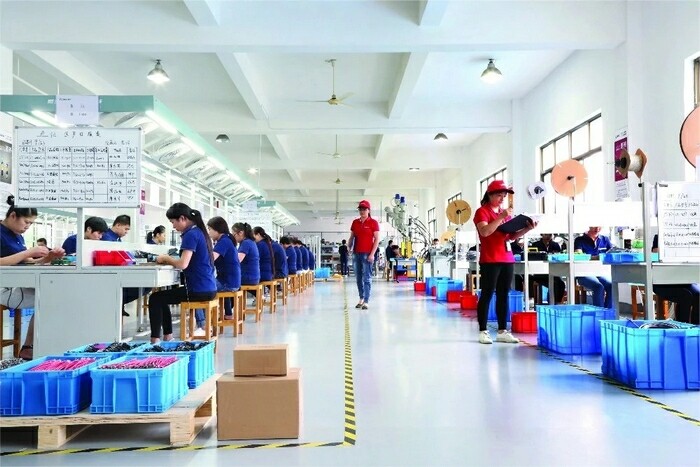

Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Female PCI-E 6Pin Pin Electrical Cable Connectors to Dual 6 Pin PCI-E Y Splitter Power Adapter Extension Wire Harness
Product Details
Brand Name: Unitech/ OEM
Model Number: (6+2)pin pcie cable

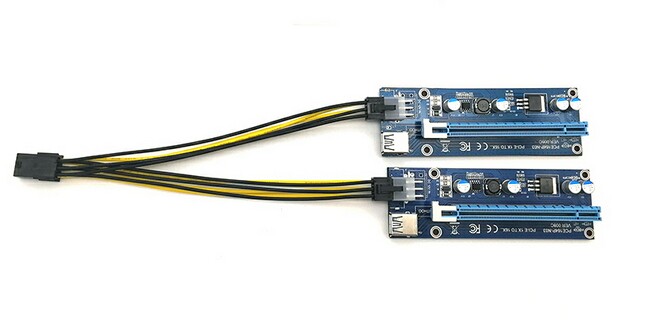

Application:computer graphics card
Length: Customized
Color: Customized
Connector1: 6pin Female PCI-E 6Pin Pin Electrical Cable Connectors
Connector2: 6pin * 2 Male PCI-E 6Pin Pin Electrical Cable Connectors
Packaging & Delivery
Packaging Details: 10PCS in a PE bag, 300pcs in a Standard export carton
Port: Shenzhen, HK
Lead Time :7 days after payment
Certification:UL SGS RoHS
Application:Computer Internal Power Supply Cable Electrical Equipment etc.
Connector Brand:Molex
Connector Type:Molex PCI-Express Connectors
Connector A:PCI-E 6Pin Male * 2
Connector B:PCI-E 6Pin female
Wire gauge:UL1007 18AWG 16AWG
Wire length:30cm 50cm 60cm
Wire color:Black Yellow
Wire Insulation Material:PVC
Wire Conductor Material:Tinned Copper
Voltage:12-24V
Testing Voltage:2000V
Electrical:
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 10M Ohms (Min)
3. Contactor Resistance: 1 Ohms (Max)
4. 100% Open Short and Miss Wire Test
