Over-molded Molex Mini-fit 3.0 Connector Cable Harness Manufacturer
Welcome Calls：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Over-molded Molex Mini-fit 3.0 Connector Cable Harness
| Product name |
Over-molded Molex Mini-fit 3.0 Connector Cable Harness Manufacturer |
| Key Words | Micro-Fit 3.0 Overmolded Cable Assembly； Molex Micro-Fit 3.0 Connector Cable； 4 Wire Over molding Micro-Fit 3.0 Connector |
| Brand Name | Unitech / OEM |
| Place of Origin | Guangdong, China (Mainland) |
| Model Number | UT-2693 |
| Wires Spec | UL2464 4*24AWG |
| Terminal | Micro-Fit 3.0 Overmolded Connector |
|
Number Positions |
4 Pin |
|
Contact Pitch |
3.0mm; |
|
Connector Housing |
43025-0400 |
|
Crimp terminal: |
43030-0001 |
| Application | Computer,Insutrial, Automation, medical, automotive, telecommunication, consumer electronics etc. |
| Supply Ability | 250000 Piece/Pieces per Month |
| Lead Time | 5-10 days After Order Confirmed |
| Packing | One pc in a PE bag; 400pcs/Carton Each carton with a Waterproof Bag |
| Test | pulling force test, continuity test, cross section and vibration test ,aging/bending/salt spray test |
| Quality Control | 100% inspected before dispatching |
| Engineering service | OEM and ODM service , We can customize to produce according to your samples or drawings |
| Payment Terms | T/T |
| Delivery Method | DHL/Fedex/UPS/TNT/Postal |
| Trade Terms: | EXW,FOB SZ,CIF,CFR and FCA HK. |

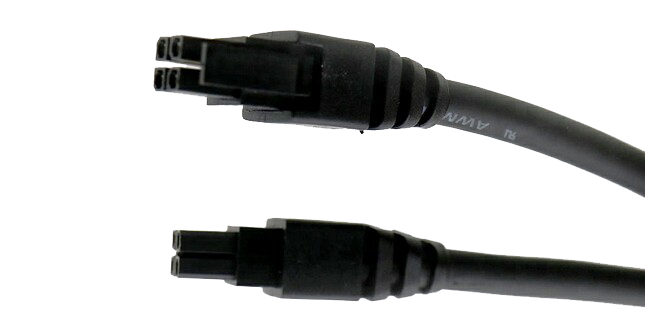

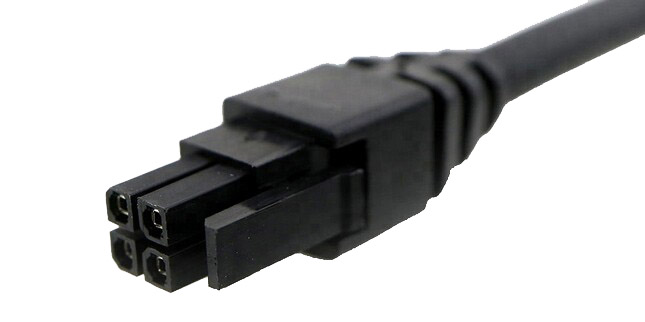

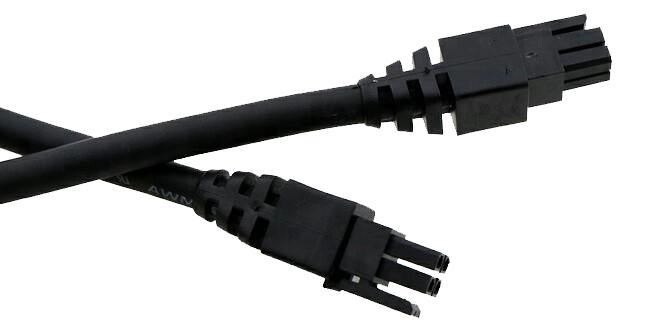

Molex Micro-Fit 3.0 Connector Cable Assembly
4 Wire Over molding Micro-Fit 3.0 Connector Wire Harness
In response to a customer requirement for a clean and professional look and a highly reliable lifespan, UNITECH created a mold tooling for an overmold for Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2 series including but not limited to housing MOLEX MINIFIT JR 0039012040, 0039012045, 0039013042, 0039013045. The Overmold/boot may be molded on PVC or Silicone material cable jackets. The overmold helps the connector withstand thousands of plug/unplug cycles without risk of damage or wear in rugged applications
The overmolded 4 PIN 3.0mm pitch connector cable is based on molex existing receptacle housing 0430250408, 0430250408, 0430250410 and terminal 0430300002, 0430300003, 0430300004, 0430300005, 0430300006 to mate Molex existing pin connector 43020-0400 and micro-fit header 43045-0400. The over mold connector cable is fitting with UL2464 4*24AWG cable.
