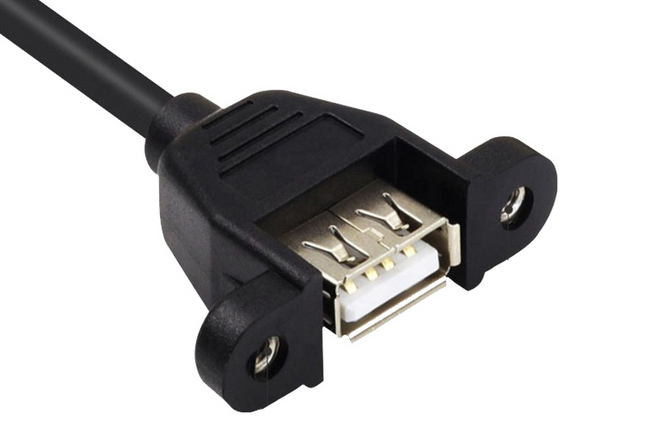

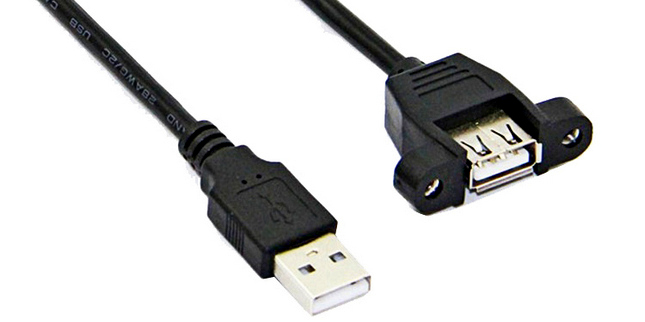

Screw Mounted USB 2.0 Male to Female Wire Harness High Speed USB Extension Cable Assembly
Welcome Calls：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Screw Mounted USB 2.0 Male to Female Wire Harness High Speed USB Extension Cable Assembly
Description:
1) The best price and high quality usb cable panel mount type A
2) 2.0 cable( compliant with USB1.1,USB2.0,USB3.0); one 28awg twisted pair(data )plus two power conductors;
3) Overall shield: overall aulminized polyester shield with drain wire pus tinned copper braid shield.
Screw Mounted USB 2.0 Male to Female Wire Harness High Speed USB Extension Cable Assembly
Wire structure:
|
Signal Conductor
|
28AWG (7/0.12) BC |
| Insulation | 0.9=0.05MM, PE (202-3364), white/green |
| Conductor | 28AWG~20AWG (7/0.12~0.30) BC |
| Shield | Aluminium foil |
| Ground Wire | 28AWG (7/0.12) BC |
| Braided Wire | 16/50.10BC |
| Jacket | PVC |
Features:
|
1) Type:
|
professional make high quality usb cable panel mount |
| 2) Connecor: | Gold/Nickel plated |
| 2) Conductor: | Pure Copper/Tinned Copper |
| 4) Gauge: | 30AWG,28AWG,26AWG optional; |
| 5) Length: | 0.5M,1.5M,2M,5M Customized; |
| 6) Jacket color: | Beige,Black,Transparent,white; |
| 7) Edition: | 1.1/2.0/3.0 Version Optional. |
