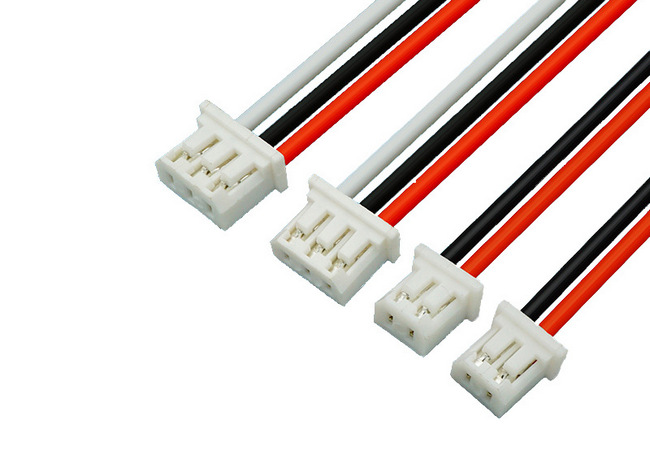

Molex 51004-0200 2.0mm Pitch 2P Connector Battery Wire Cable Assembly
Welcome Calls：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Molex 51004-0200 2.0mm Pitch 2P Connector Battery Wire Cable Assembly
| Circuits (maximum) | 2 |
|---|---|
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow-Wire Compliant | No |
| Lock to Mating Part | Yes |
| Material - Resin | Polyester |
| Net Weight | 72.100/mg |
| Number of Rows | 1 |
| Packaging Type | Bag |
| Panel Mount | No |
| Pitch - Mating Interface | 2.00mm |
| Stackable | No |
| Temperature Range - Operating | -20°C to +85°C |

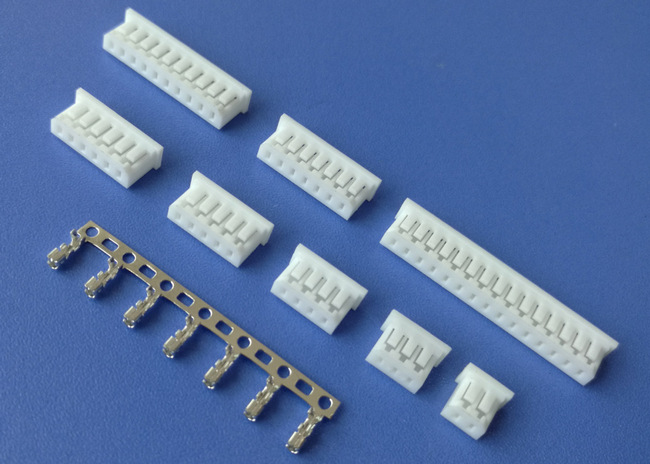

Connector: Molex 51004-0200(other pins are available)
Housing Picth: 2.0mm
Wire: AWG24-30
Length: can be customized
Material: PVC and Copper
Lead time: 3~5 days for samples, 10 days for bulk order
Application: Automotive, Power, Electronic, PCB
Delivery Method: FedEx DHL UPS TNT Door-to-Door 3~5 days transport
Service: OEM and ODM are welcomed
