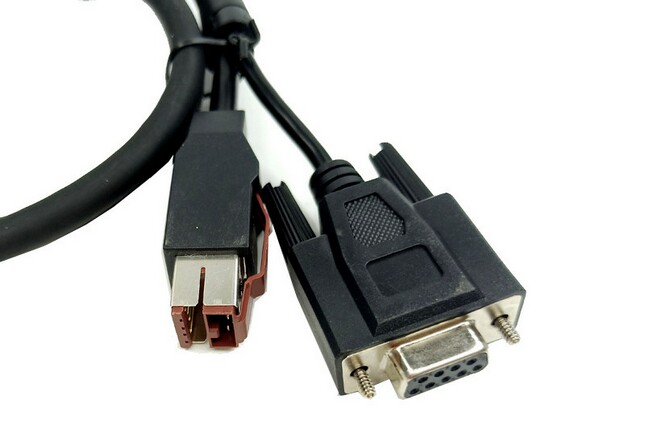

High Quality 12 Pin Molded Molex Micro-fit 3.0 43025 To DB 9 Connector Wire Harness

High Quality 12 Pin Molded Molex Micro-fit 3.0 43025 To DB 9 Connector Wire Harness

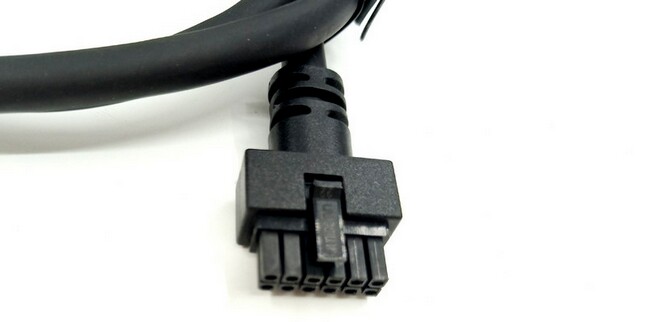

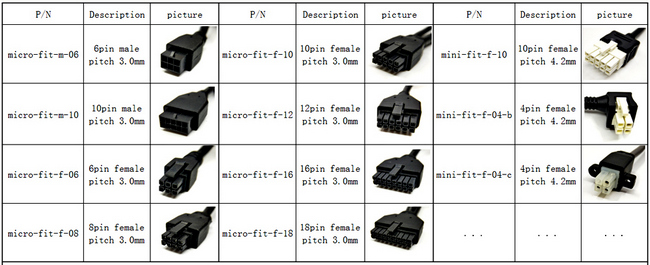

14pin 3.0 mm pitch connector cable molding is based on  Molex existing housing 43025-1400 and terminal 43030-0001 to mate Molex existing pin connector 43020-1400. The mold connector cable is fitting with UL2464 14C 24AWG cable, the insulation OD is Ø1.18mm, and cable OD is 7.2mm, the cable jacket is high flexible black PVC Sheath.

1. Component Statements:

   1.1 Connector

   Connector Gender:Female

   Housing: Molex 43025-1400 or replacement

   Termination: 43030-0001 or replacement




2. Cable:UL2464 24AWG*14C multi-core molding cable

   Cable Construction Items:

   2.1 Conductor


   Sectional Area AWG/mm 11/0.16±0.008TS

   material  Tinned Copper

   Sectional Area mm2 0.22

   Stranded Diameter mm 0.61

   2.2 Insulation


   Material PVC

   The average thickness mm 0.245

   Minimum Guage mm 0.21

   Color Red, Black, Yellow, White, Green, Orange, Blue,Brown

   Insulation Diameter mm 1.1±0.1

   2.3 Shielding Covering

   Screen Mode /

   Sectional Area AWG/ mm /

   Material /

   Total Diameter mm /



1. Jacket

   Material PVC

   The average thickness mm 0.95

   Minimum Guage mm 0.81

   Color Black

   Overall Diameter mm 5.5±0.15




2. Overmolding

   Material PVC

   Plastic Hardness: 45P

   Color: Black




3. Electrical Performance:

   Rating voltage: 300V AC




   Rating Current: 5A




4. mechanical performance:

   5.1 overmolded side can withstand 5kgf axial tensile force for one minute without physical damage

   5.2 overmolded side can pass the bending test in 100 cycles at each




5. temperature

   operating temperature, fixed installation: -40 to 80c deg.

Service: Wiring Harness OEM

Certificate: CE, RoHS
