Custom IP 67 Waterproof 4 Pin GX12 Aviation Connector Extension Cable for vehicle cctv camera
Welcome Calls：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Product Details:
| Item name | Custom IP 67 Waterproof 4 Pin GX12 Aviation Connector Extension Cable for vehicle cctv camera | ||||
| Number of contacts | 3 | 4 | 5 | 8 | 12 |
| Connector locking system | screw | ||||
| Termination | solder | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >100 mating cycles | ||||
| Upper temperature | ~+80℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 250V | 250V | 125V | 60V | 30V |
| Rated impulse voltage | 2500V | 2500V | 1500V | 800V | 500V |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | I | ||||
| Rated current(40℃) | 4A | 4A | 4A | 2A | 1.5A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PA | ||||
| Material of housing | Brass nickel plated | ||||

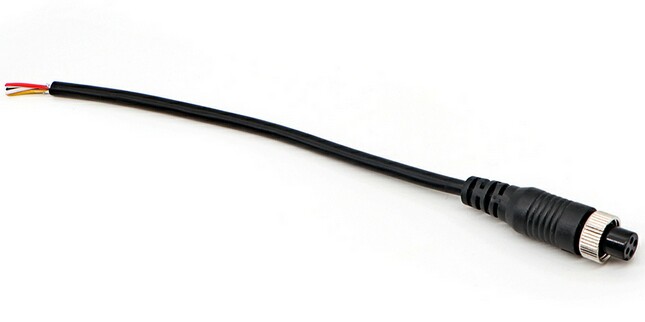

Custom IP 67 Waterproof 4 Pin GX12 Aviation Connector Extension Cable for vehicle cctv camera

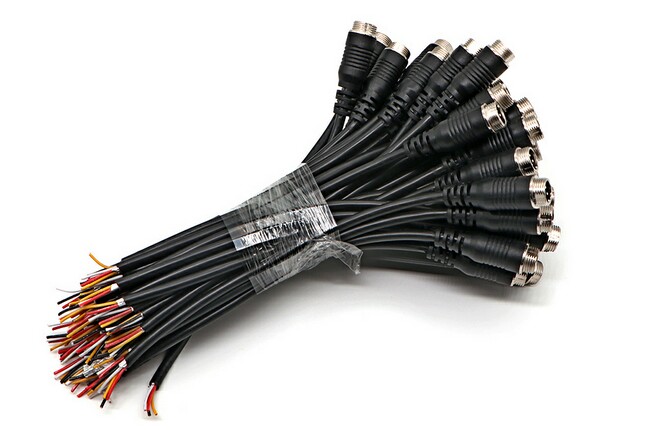

Custom IP 67 Waterproof 4 Pin GX12 Aviation Connector Extension Cable for vehicle cctv camera

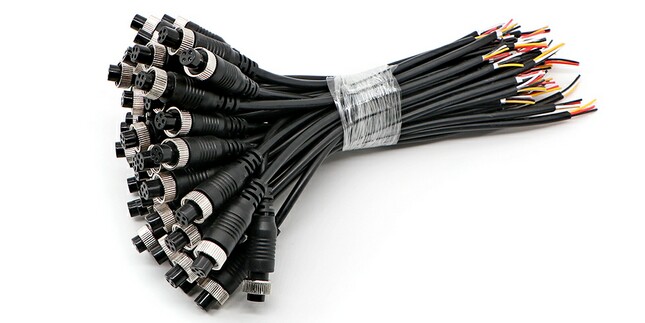

Custom IP 67 Waterproof 4 Pin GX12 Aviation Connector Extension Cable for vehicle cctv camera
Automation M12 A-Coded Connectors
Euro-style sensor connectors with M12 locking for factory automation, process control, industrial instrumentation, and commercial electronics. The Series 713 offers many different cable connectors, panel-mounted receptacles, and accessories. Connectors have industry-standard A-coding .
- Plastic, metal or stainless steel shells
- 360° shielding and IP 67 protection
- 3 to 12 contacts per connector
- Contacts with solder, screw, or cage clamp termination
Sensor M12 B-Coded Connectors
The Series 715 features B-coding, which ensures that B-coded connectors do not mate with standard A-coded connectors.
- B-coding
- Metal housings shielded and IP 67
- 4 or 5 contacts per connector
- Contacts with screw termination
Sensor M12 D-Coded Connectors
The Series 825 and 876 metal-shell connectors are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. The IP67 field-attachable connectors offer spring cage or screw termination, both aimed at providing quick and easy installations.
