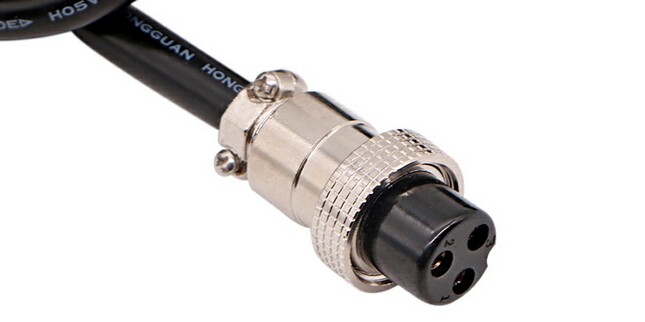

Industrial waterproof male 3 pin m12 circular connector for Car Light
| Connector |
M10,M12,M14,M15,M17,M19 2P 3P 4P 5P 6P waterproof connector |
| Wire | 18-24 guage,PVC/TPU/RUBBER |
| Color | Black,White,Other |
| Length | Optional |
| Voltage Rating | AC250V |
| Current Rating | 5A~20A |
| Times Of Plug | 1500 |
| Contact Resistance | 10mΩ |
| Insulation Structure | 500M Ω at DC500V |
| Withstand Voltage | 1.5KV |
| Temperature Rating | -40~+105℃ |
| Waterproof Level | IP68/IP67 |
| Max Cable OD | 10mm |
| Pin Numbers | 2C,3C,4C,5C,6C or Customized |
| Certifications | CE/ROHS, ISO14001, T/S16949 |
| Application |
Our products are widely used in LED lighting, Flexible strip outdoor display, electrical equipments, automation machines, electrical vehicle and etc... |
Industrial waterproof male 3 pin m12 circular connector for Car Light
Industrial waterproof male 3 pin m12 circular connector for Car Light
Industrial waterproof male 3 pin m12 circular connector for Car Light
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A, B, D, T, S, X coding are available
Gender: Male and Female
Connector Design: Cable Plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Normal Temperature: -10℃~+80℃
Material:
Connector Body: TPU
Male Contacts: Brass with gold plated
Female Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Wire Jacket: PVC/PUR
Electrical data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 1.5A~4A
Rated Voltage: 30V~250V
