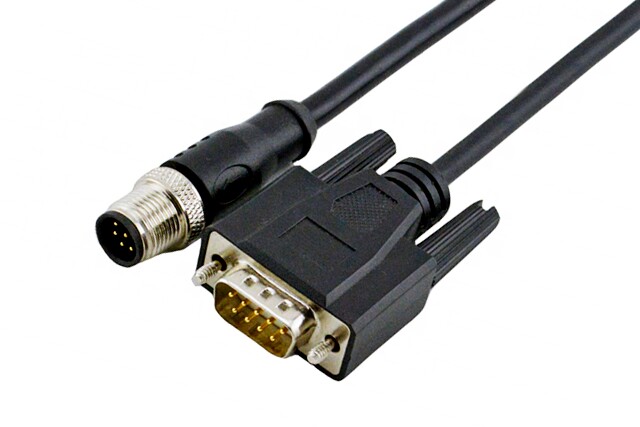

Custom Waterproof Cable Assembly Male 12 pin m12 Circular Connector to RS232 Connector Cable
• M12 Circular connector according to IEC 61076-2-101
• M12 circular connector with M12*1.0 screw locking
• Equivalent to Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical
Custom Waterproof Cable Assembly Male 12 pin m12 Circular Connector to RS232 Connector Cable
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A, B, D, T, S, X coding are available
Gender: Male and Female
Connector Design: Cable Plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Normal Temperature: -10℃~+80℃
Material:
Connector Body: TPU
Male Contacts: Brass with gold plated
Female Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Wire Jacket: PVC/PUR
Electrical data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 1.5A~4A
Rated Voltage: 30V~250V
