JST SAN 2.0mm pitch 2pin Battery Connector Cable Assembly
Welcome Calls：
Unitech Energy System Limited was founded in 2014. The factory covers about 110,000㎡ . and We have more than 270 employees, including over 37 engineering technicians. We mainly produce custom wire harness and battery pack accessories(which include: Nickel Strip Tabs; Case Enclosures; Battery Spacer Holders; Shrinkable Sleeve and Battery Insulation Paper etc). Our products are widely used in Medical Electronic Appliances, Military Electronics, Aerospace Electrical A
Product Description

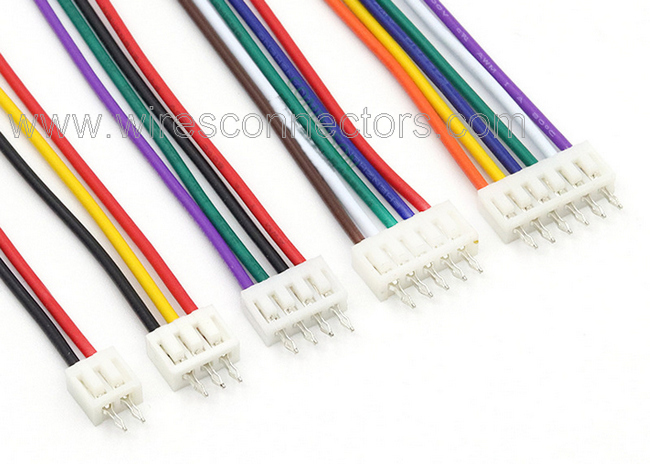

JST SAN 2.0mm pitch 2pin Battery Connector Cable Assembly
Detailed Product Description
| Product Name: | SAN 2.0 Cable Assembly | Cable: | UL1007 24-30AWG |
|---|---|---|---|
| Length: | 100mm Or OEM | Color: | Black /red Or OEM Color |
| Samples: | Available And Free | Price: | Factory Best Prices |
Details for Cable Assembly:
|
Product Name |
JST SAN 2.0mm pitch connector cable assembly |
| Connector Type | JST SAN 2.0 |
| Housing Pitch | 2.0mm or under customer's request |
| Terminal type | IDC, Crimped, Soldered |
| Application | Automotive/Electronic wire harness |
| Cable preparation | Trimmings, Stripping, Tin coating, Shielding, Twisting |
| Engineering service: | OEM and ODM service ,2D drawing |
| Cable Jacket Material | PUR, TPE, PTFE, PVC, HD-PE, Rubber, Silicone etc. |
| Quality Control: | 100% inspected before dispatching |
| Delivery Time | 10- 20 days, base on projects details |
| Cable length&color | Depends on your request |
| Sample | Will send sample before mass production |
| Packing | 10PCS per bag with label,export standard carton |
Details for SAN 2.0 Connector:
| Part Number: | SAN 2.0 |
| Pitch-Mating Interface: | 2.0mm |
| Circuits/Poles: | 2-30 |
| Applicable wires: | AWG30#~24# |
| Temperature range: | ‘-25℃~85℃ |
| Voltage rating: | 250V.Ac/Dc |
| Current rating: | 2A |
| Contact resistance: | ≤0.02Ω |
| Insulation resistance: | ≥1000MΩ |
| Withstand voltage: | 1000V.Ac/1min |
| Material: Housing | Nylon UL94V-2(0) |
| Material: Wafer | Nylon UL94V-2(0) |
| Material:Terminal | Phos.bronze Tin/plated |
